Unit 4: Design Domain Service and Business Error

🎯Overview

In this course you will learn about domain services within the domain namespace and you will understand for which purposes they are used in the IBM DevOps Solution Workbench. You will also practice how to design a domain service including its business errors using the Solution Designer.

Outline​

A domain service performs business logic, but contrary to a command, it is not bound to a particular instance of a root entity. Therefore, the business logic is performed independent of a particular instance. Typically, domain services are used to change the state of multiple instances or to orchestrate several commands.

Domain services accept an input and an output entity and can raise business events and business errors.

Prerequisites​

You have successfully completed the Preparation section in the Course Introduction.

  1. Open your workspace in the Solution Designer.
  2. Find your imported project and open it by clicking on it.
  3. On the left sidebar, click on Domains and then select domain namespace ord.

Exercise​

Estimated time: 15 minutes
Exercise goal: After completing this course you are able to design domain services and business errors.
Supported languages: Java and TypeScript

In this exercise, we will create a Domain Service that cancels all orders of a customer. The service will accept the customerReferenceId as its input. For each order to be cancelled, it will invoke the previously created cancellation command (see Course 3: Design Commands). If no orders are found, the service should throw a BusinessError.

Step 1: Create a new Domain Service​

  1. Switch to the Services tab.
  2. Create a new domain service by following these steps:

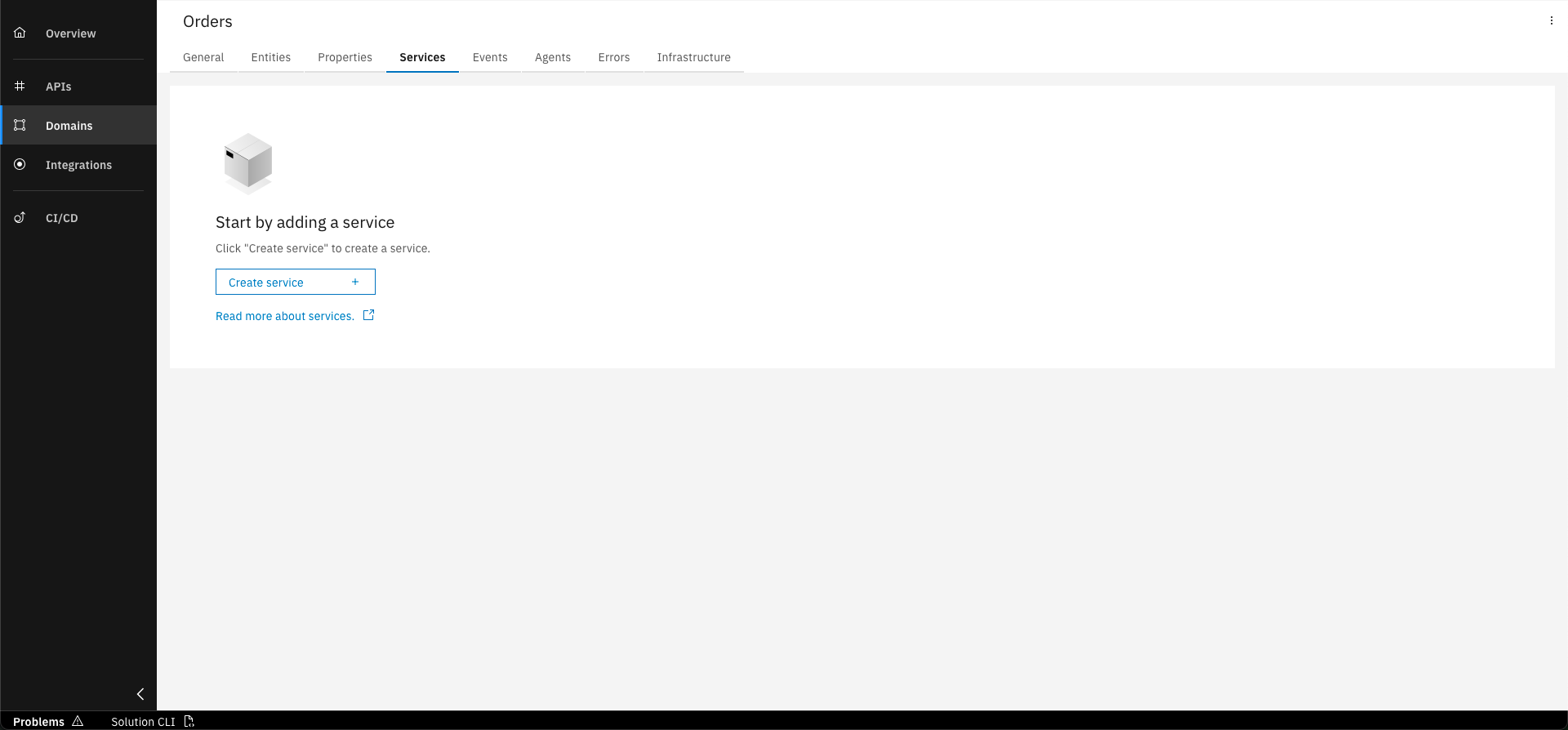

Create Domain Service Screenshot 1

Click on "Create service"

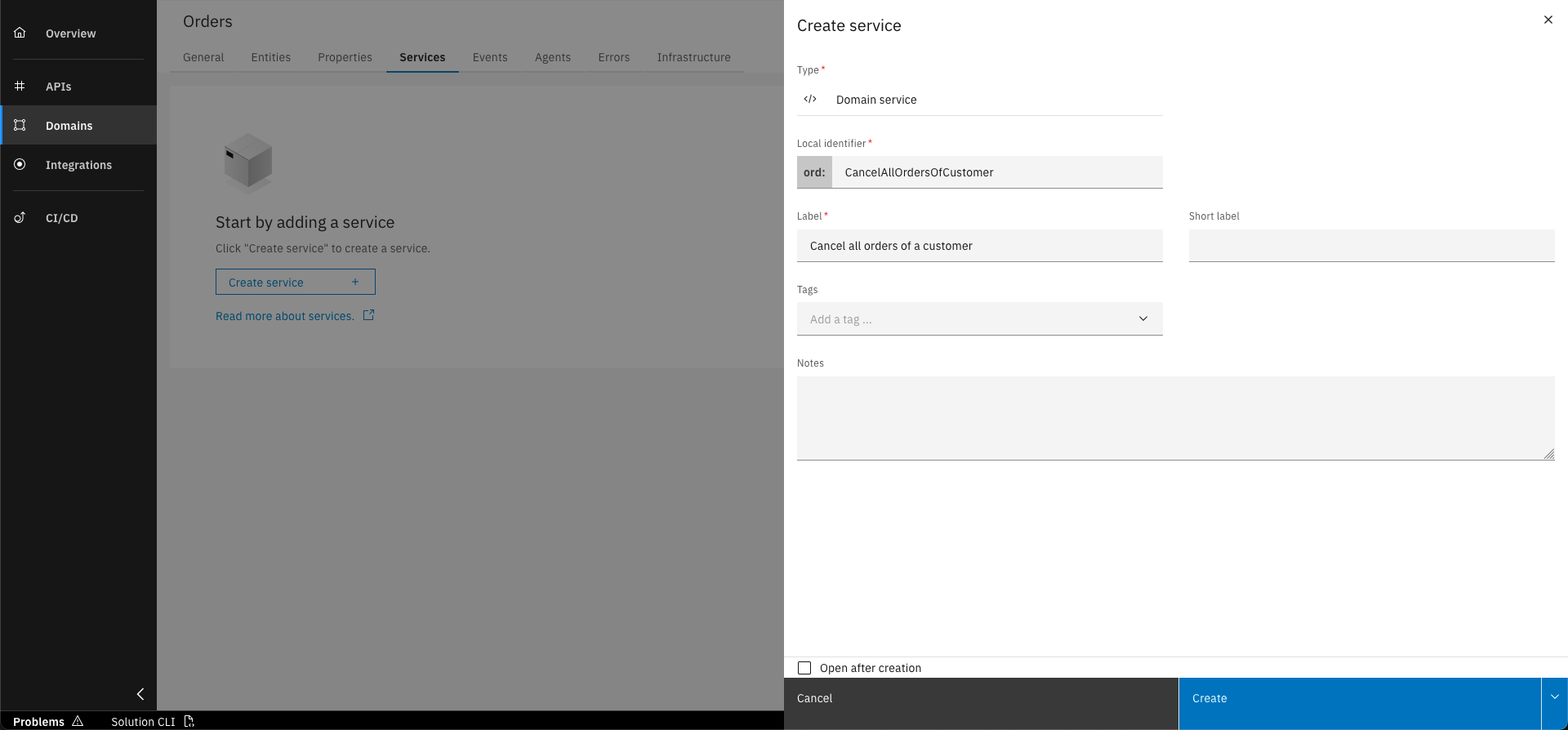

Create Domain Service Screenshot 2

Fill out the form with the following data and click on "Create"

Basic data to create Domain Service

You can enter the data below to populate the for creating a Domain Service necessary fields:

  • Local Identifier: CancelAllOrdersOfCustomer
  • Label: Cancel all orders of a customer

Step 2: Add Input entity​

Since we want to cancel all orders of a customer, we need to be able to identify the customer and the customerReferenceId must be provided as input.

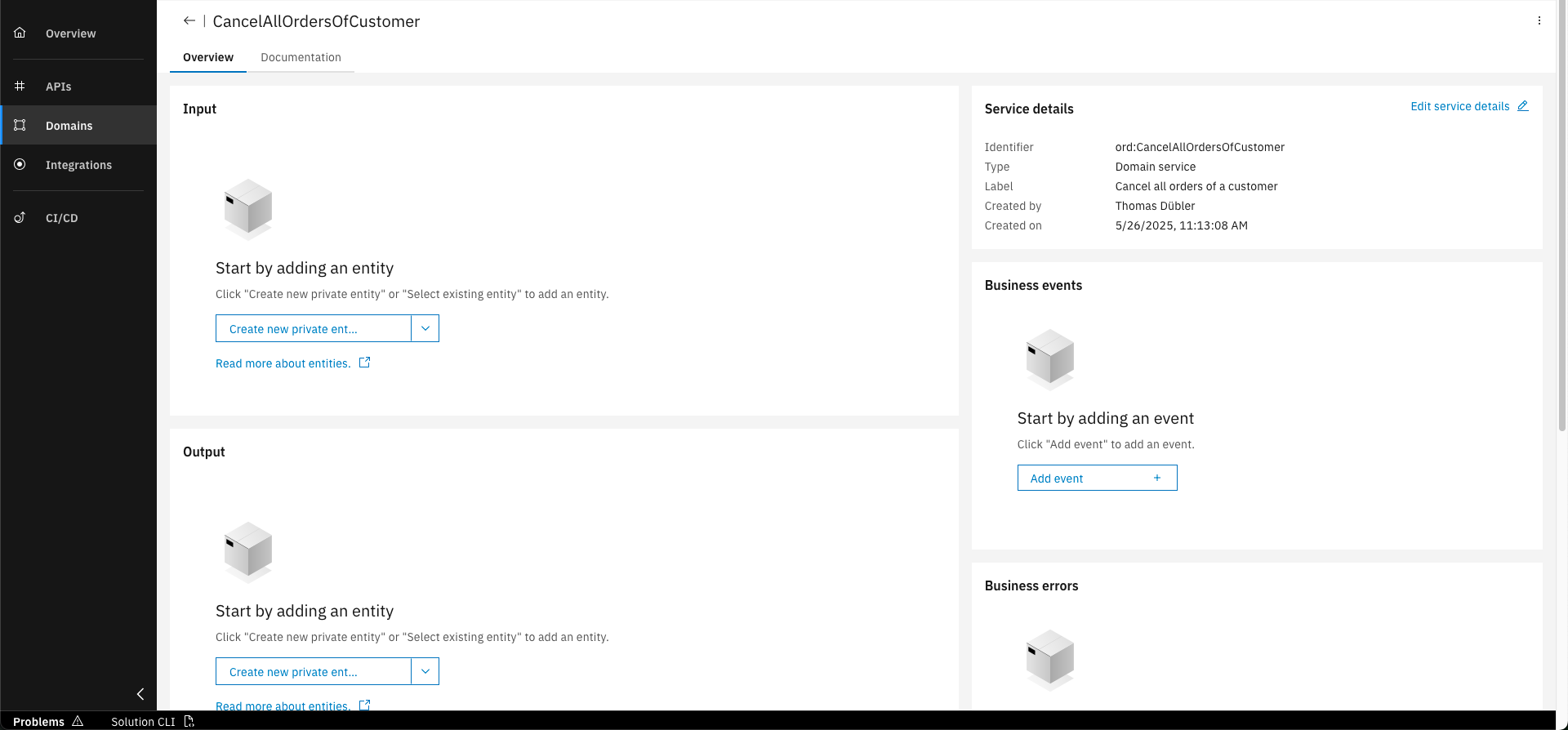

Add input entity Screenshot 4

Click on "Create new private entity" button

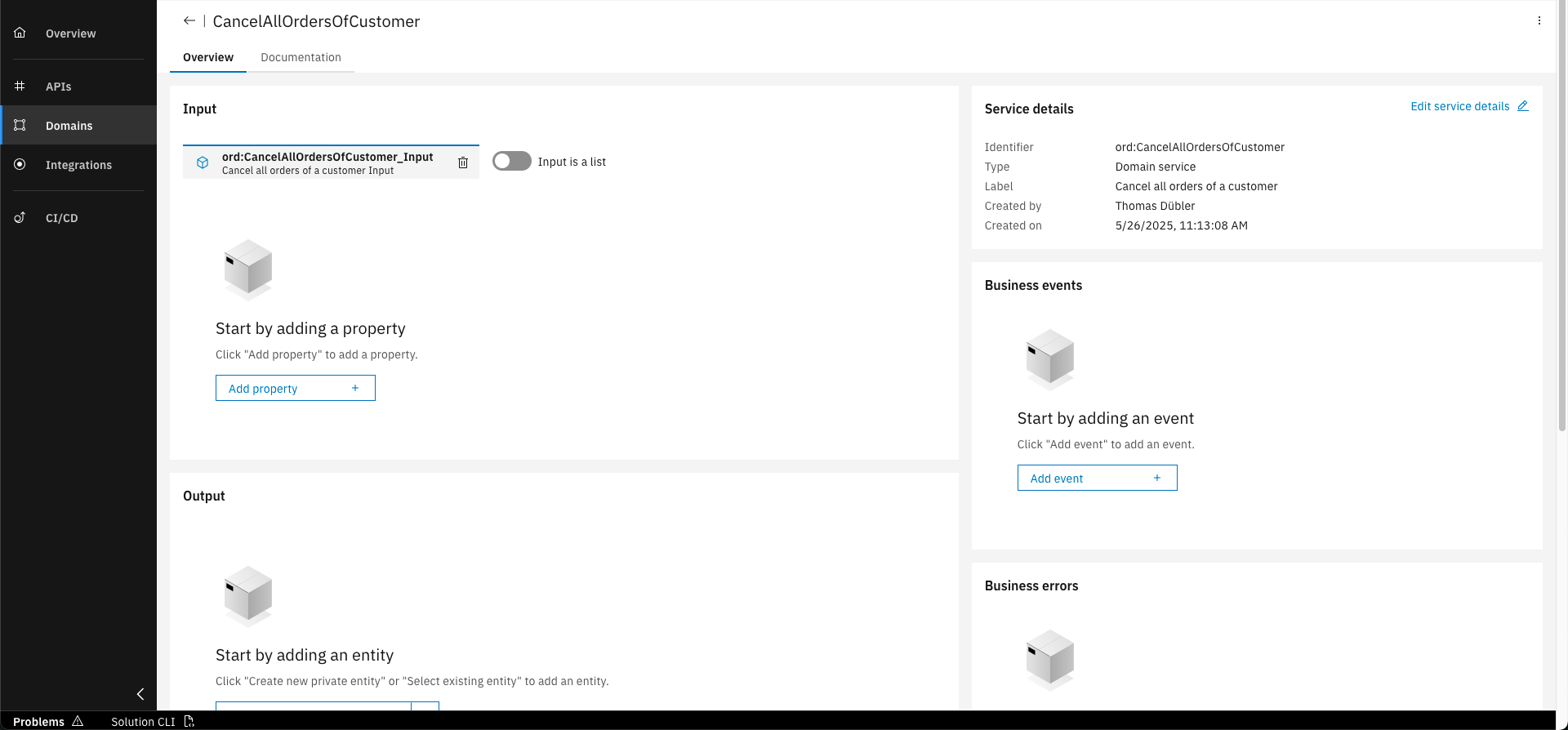

Add input entity Screenshot 5

Click on "Add property" button

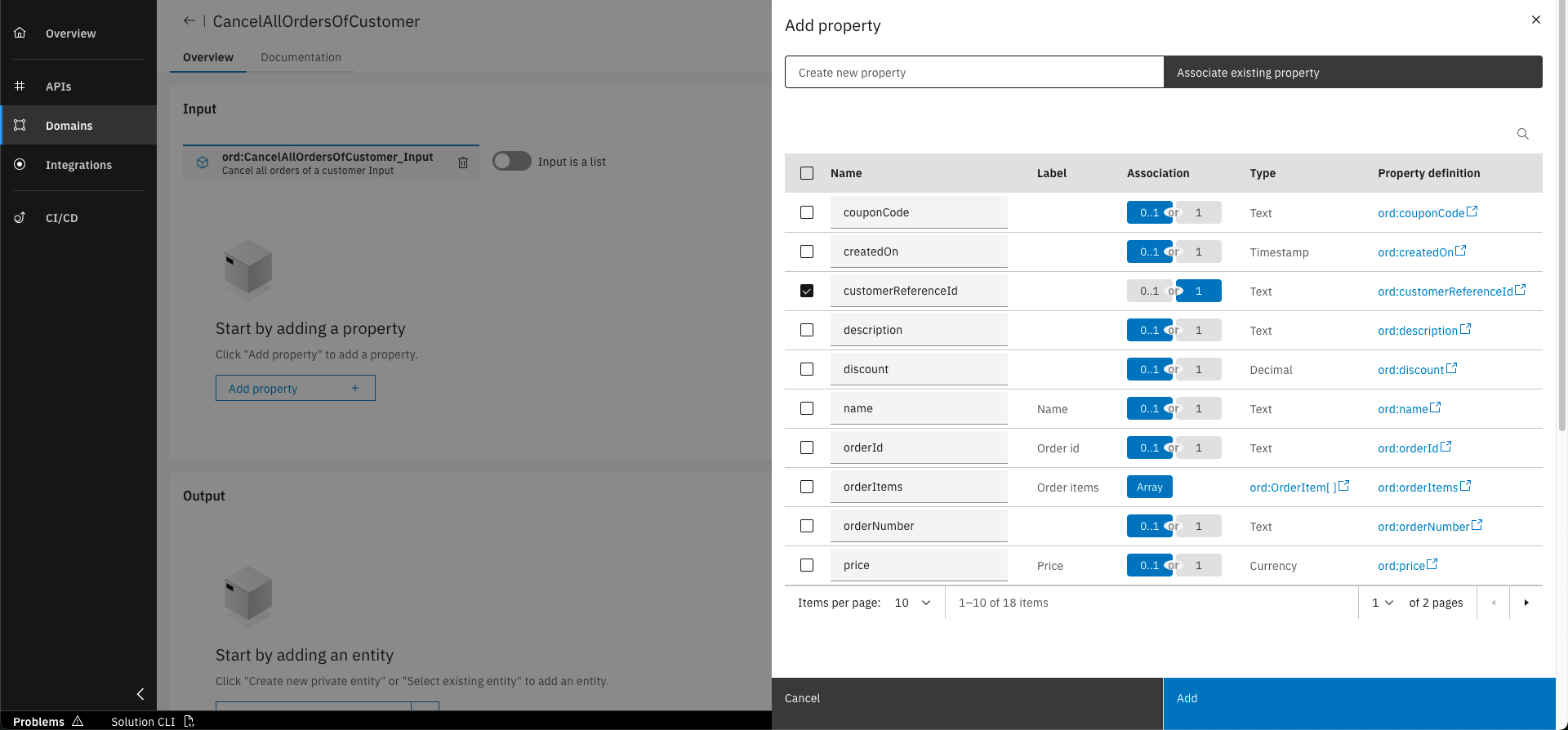

Add input entity Screenshot 6

Click on "Associate existing property" and select "customerReferenceId" and mark it as mandatory (1). Click on "Add"

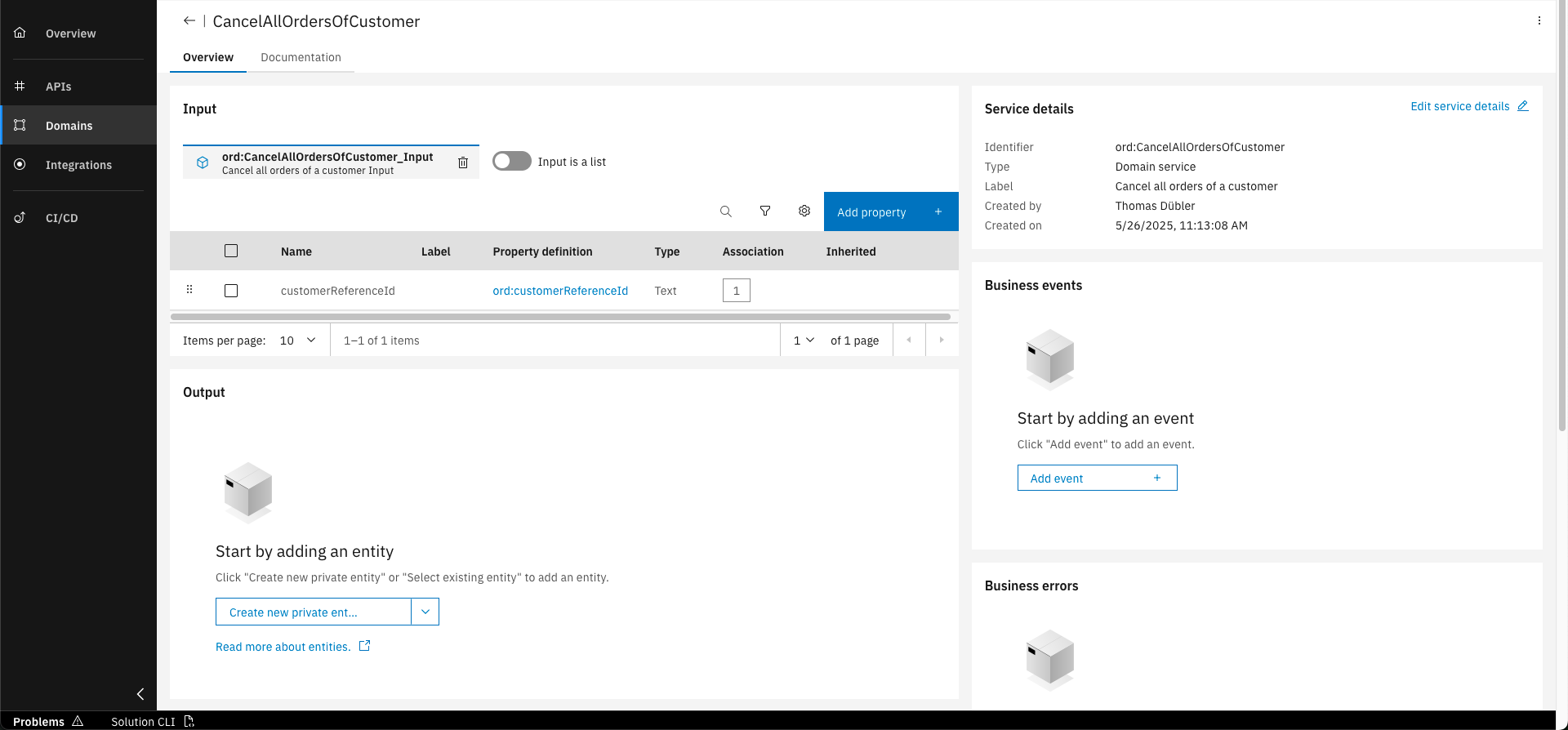

Add input entity Screenshot 7

The "customerReferenceId" property is now added to the input entity

ℹ️Input List

Note that you can specify that the input shall be a list. Same applies also for the output, which we do not need for our use case.

ℹ️Association type

When adding properties, the "Association" type is specifying whether it is required (1) or can be optional (0..1).

Step 3: Add Business Error​

Since we want to throw a Business Error when no cancelable orders can be found for the customer, we will need to add one to the Domain Service. The required steps are shown below.

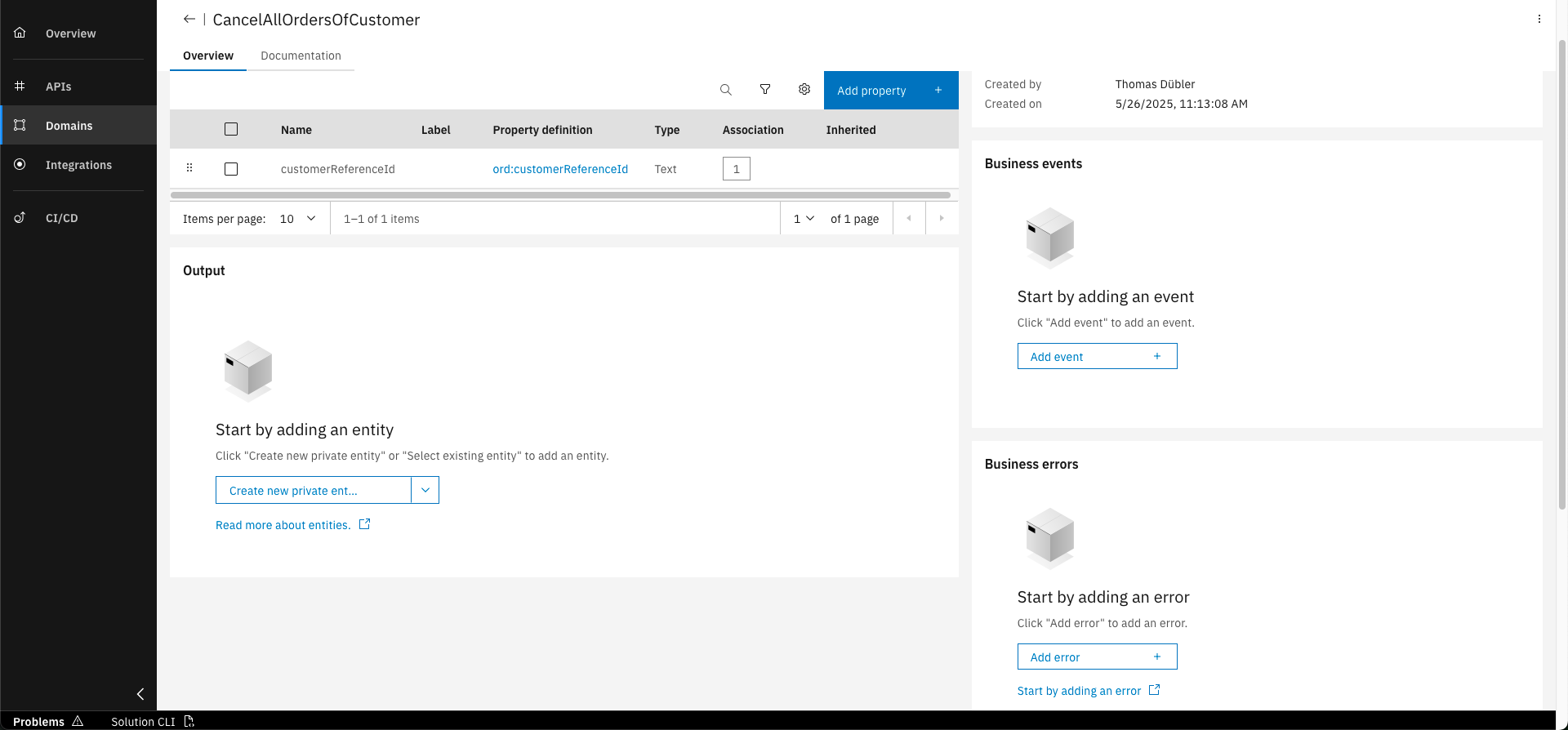

Add business error Screenshot 9

Click on "Add Error" button

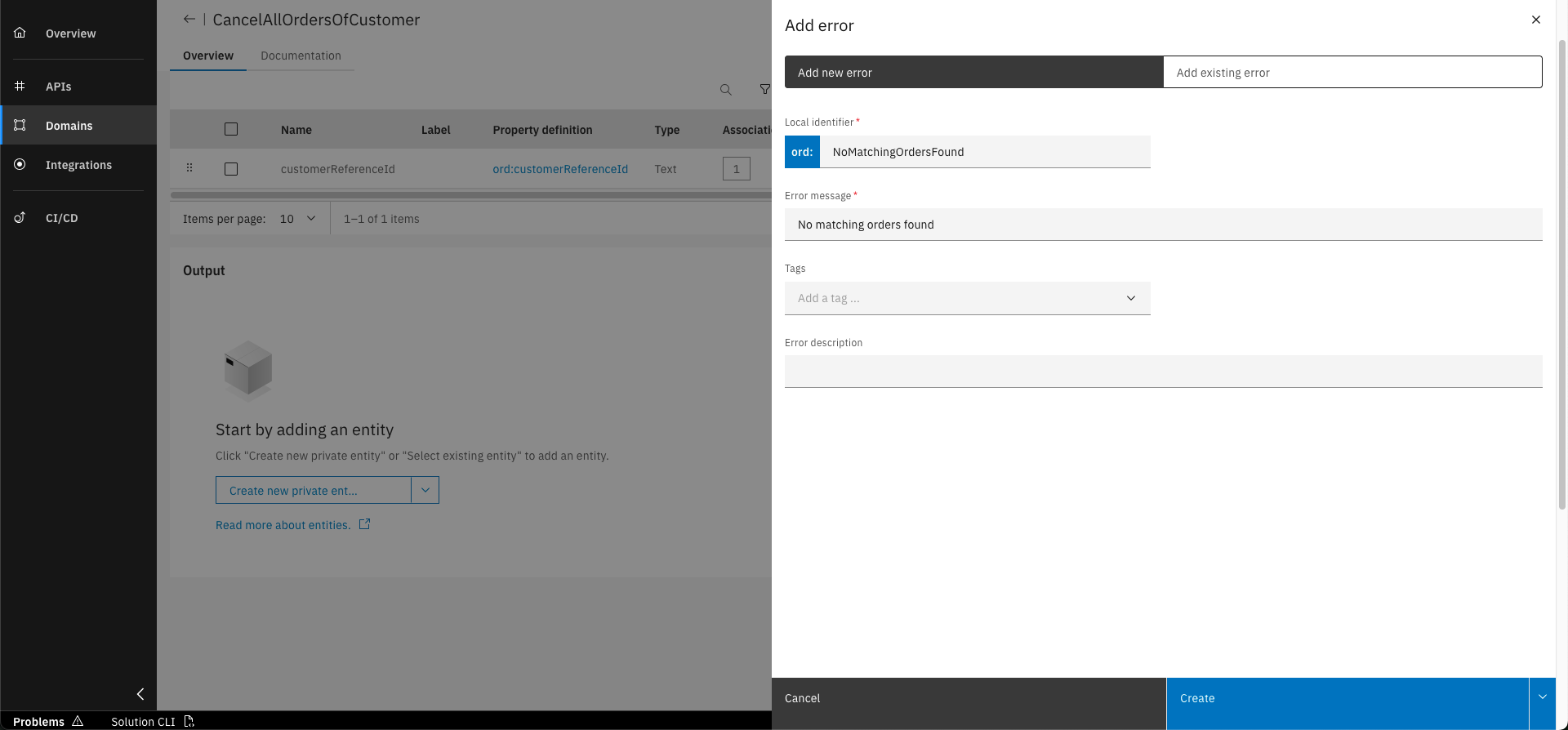

Add business error Screenshot 10

Select "Add new error" and fill out the form with the following data. Click on "Create"

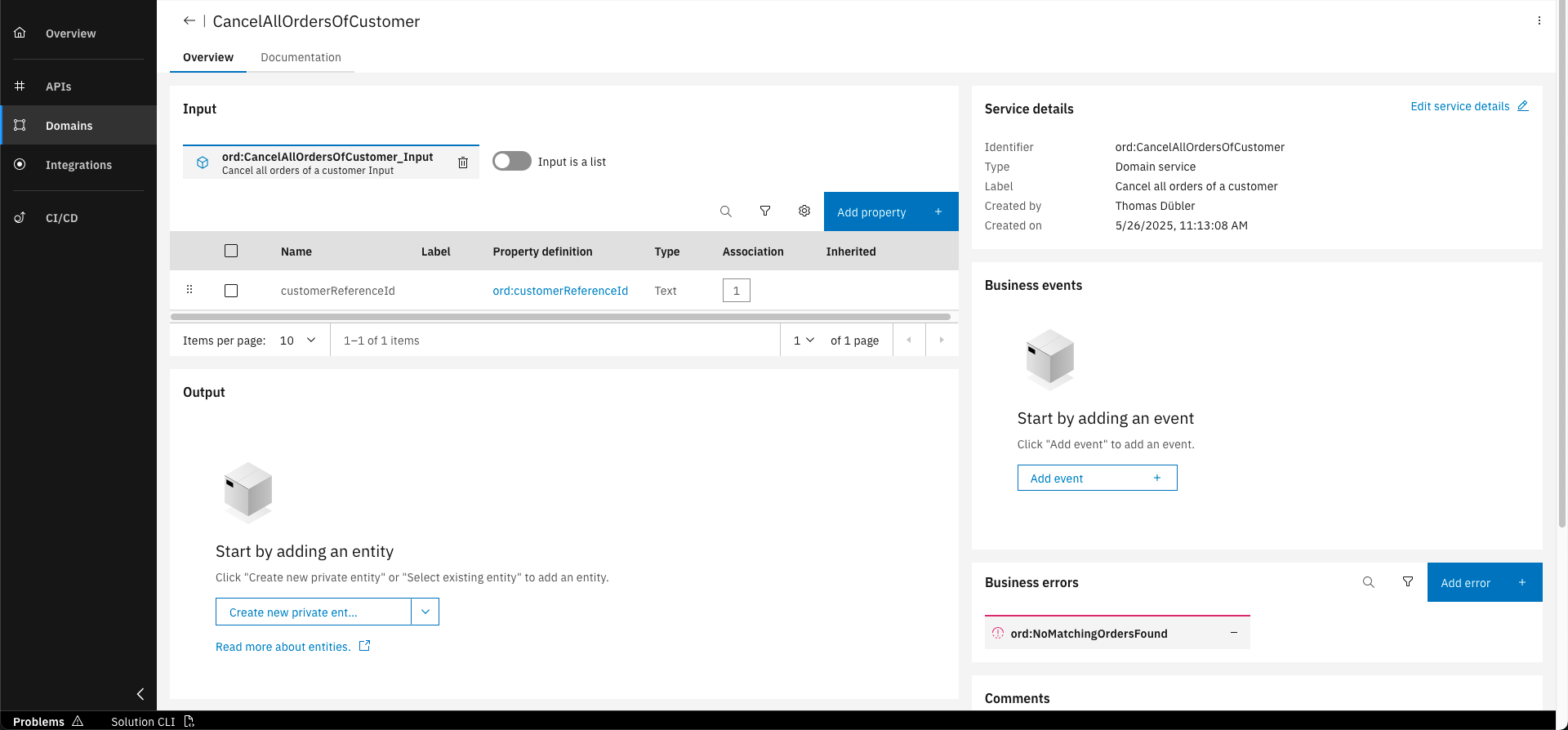

Add input entity Screenshot 11

The business error is now added to the service

Necessary data to create a new Business Error

  • Local Identifier: NoMatchingOrdersFound
  • Error message: No matching orders found

Step 4: Add Documentation​

To specify the business logic the Domain Service shall perform and to align the different roles working on the project, we can describe this directly in the Domain Service. You can find the necessary steps below.

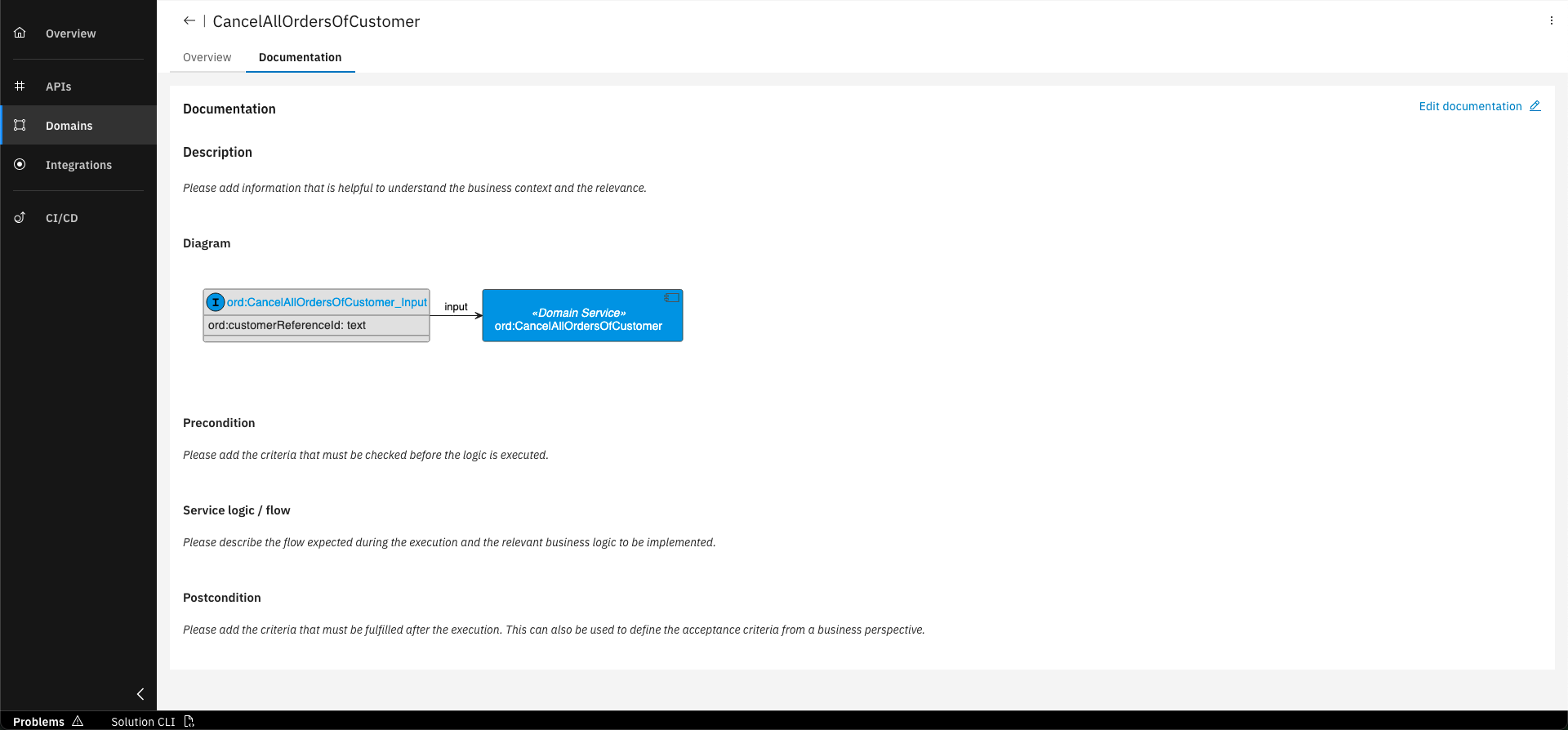

Add documentation Screenshot 12

Click on "Documentation" tab

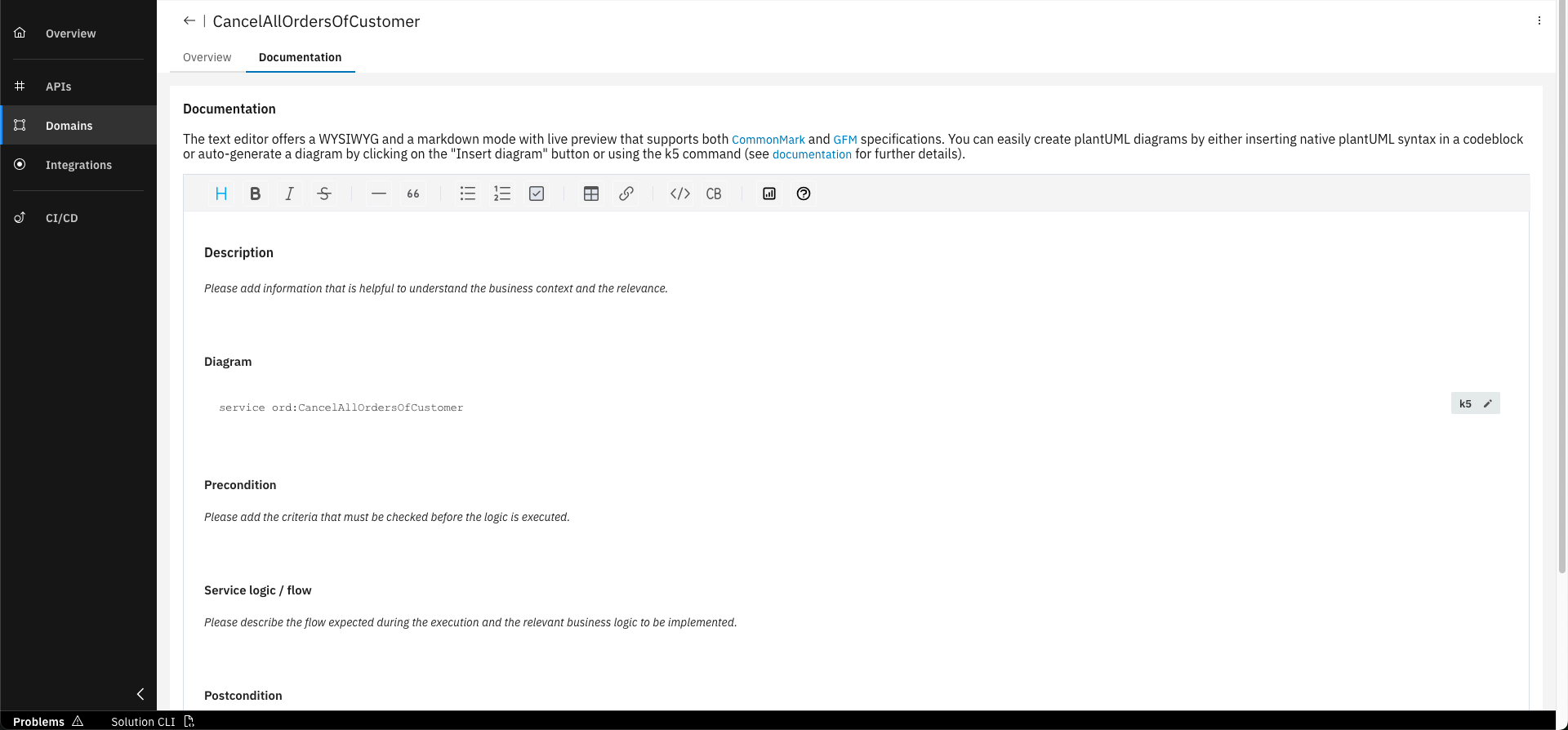

Add documentation Screenshot 13

Click "Edit documentation" button

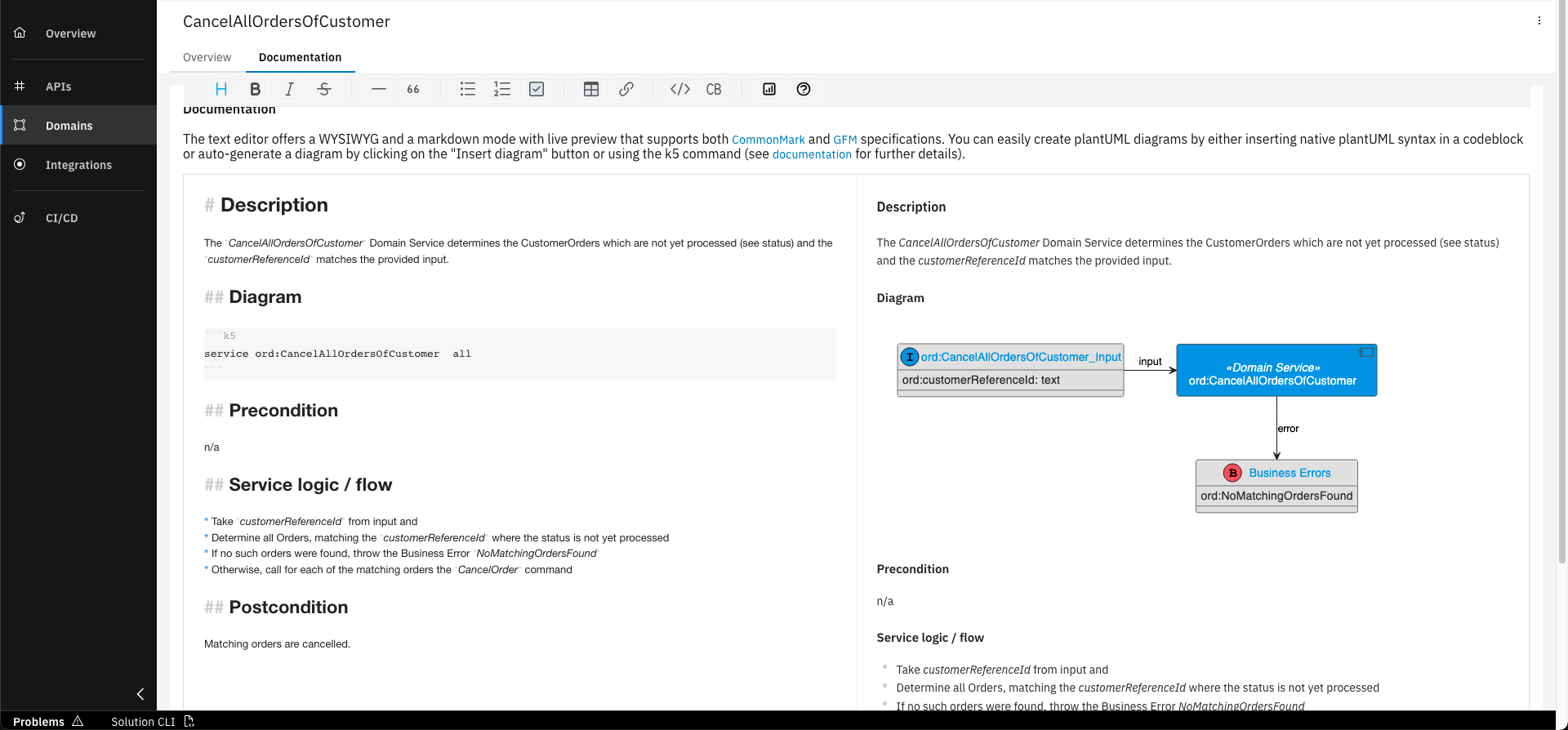

Add documentation Screenshot 14

Choose "Markdown", enter sample documentation and click on "Save"


Below, you can find a sample documentation in Markdown that describes in short what your Domain Service shall do. You can copy and paste it to complete the Domain Services documentation.

# Description

The *CancelAllOrdersOfCustomer* Domain Service determines the CustomerOrders which are not yet processed (see status) and the *customerReferenceId* matches the provided input.

## Diagram

```k5
service ord:CancelAllOrdersOfCustomer  all
```

## Precondition

n/a

## Service logic / flow

* Take *customerReferenceId* from input and
* Determine all Orders, matching the *customerReferenceId* where the status is not yet processed
* If no such orders were found, throw the Business Error *NoMatchingOrdersFound*
* Otherwise, call for each of the matching orders the *CancelOrder* command


## Postcondition

Matching orders are cancelled.

❗️Documentation possibilities

Note that the Editor provides rich possibilities for documentation. You can switch between the WYSIWYG or the Markdown mode, while you have also the possibility to insert diagrams generated by the Worbench, or create your own using PlantUML syntax. For more details, refer to the Product Documentation.

🌟CONGRATULATIONS!

You have successfully designed a domain service and a business error within the domain namespace of your Orders project!
This allows you to modify multiple instances of root entities and orchestrate the execution of several commands. Furthermore, you are able to define exceptions of your business logic in your own service projects.

What's next?​

In the next course you will learn how to design events and agents in the domain namespace.

Please find more information about Domain Services in the following links:
